GA 800 Series

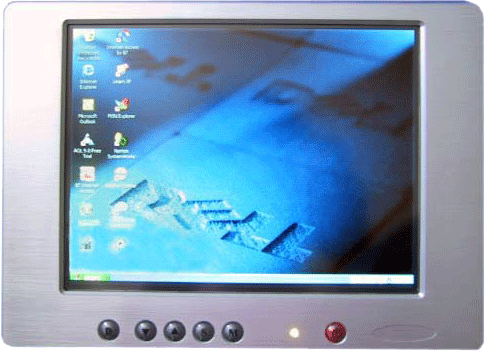

This rugged design 8" monitor with aluminium case, ideally for vehicle / marine use!

Specification:

Model 800 YYV 800 YV
Power Supply DC 12V~35V, 1A DC 11 ~ 24 V, 1A
Operating Voltage DC 12V DC 12V
Size 8" (4:3) 8" (4:3)
Display Resolutions VGA 640 x 480
VGA 800 x 600 (auto searching)
VGA 1600 x 1200		 VGA 640 x 480
VGA 800 x 600 (auto searching)
VGA 1600 x 1200
Video Input   ● Video Input x 2 (Composite Socket)
  ● Audio Input x 1 (Composite Socket)
  ● VGA (15 pin DIN) Input x 1		   ● Video Input x 2 (Composite Socket)
  ● Audio Input x 1 (Composite Socket)
  ● VGA (15 pin DIN) Input x 1
Touch Screen Yes No
Mirror function Left/Right, Up/Down Left/Right, Up/Down
Dimmer function 3 level dimmer function 3 level dimmer function
Certificate Approved CE / E13 / FCC/ RoHS CE / E13 / FCC / RoHS
Power Consumption < 8W < 8W
Operation Temperature -5°C ~+75°C -5°C ~+60°C
PAL/NTSC Switching YES YES
Weight (g) 1200 ± 10% 1200 ± 10%
Dimension (mm) (HxWxD) 164 x 228 x 40 164 x 228 x 40
OSD Controller YES YES
Surface Coating YES YES
Other Features
  • Touch Screen control using USB or RS-232. Please state on order
  • Optional IR remote control
  • PAL / NTSC Switch
  • OptionalIR Remote Control
NOTE Suitable for Vehicle Reverse Monitoring System, PC, GPS, Security, entertainment use. Suitable for Vehicle Reverse Monitoring System, PC, GPS, Security, entertainment use.
