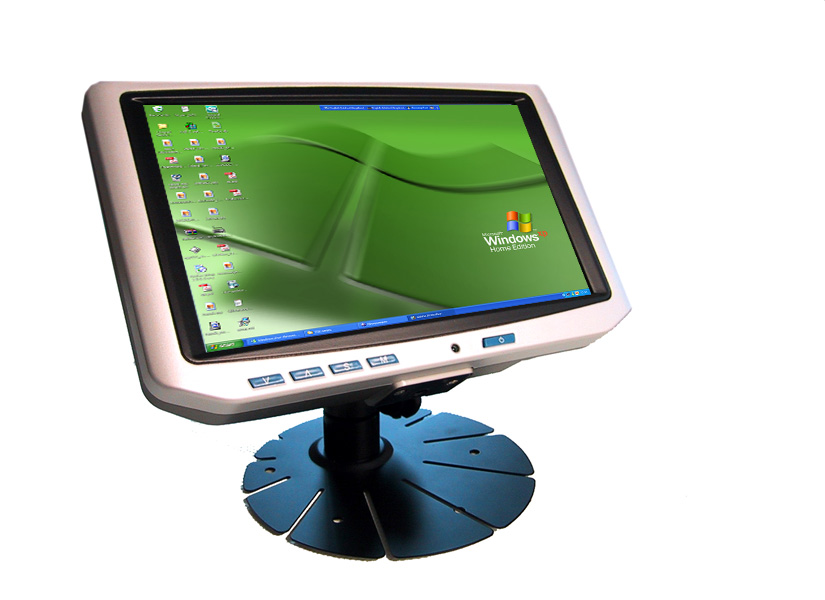

GA-700 Series

Specification:

700 YYV 700 Y 700 V 700 Y-V 700 YY
Power Supply DC 12V~35V, 1A DC 9 ~ 36 V, 1A DC 12 V, 1A DC 11 ~ 24 V, 1A DC 9 ~ 36 V, 1A
Operating Voltage DC 12V DC 12V DC 12V DC 12V DC 12V
Size 7", 16:9 7", 16:9 7", 16:9 7" (16:9) 7" (16:9)
Display Resolutions VGA 640 x 480
VGA 800 x 600 (auto searching)
VGA 1600 x 1200		 VGA 640 x 480
VGA 800 x 600 (auto search)
VGA 1600 x 1200		 800 x 480 VGA 640 x 480
VGA 800 x 600 (auto searching)
VGA 1600 x 1200		 VGA 640 x 480
VGA 800 x 600 (auto searching)
VGA 1600 x 1200
Video Input   ● Video Input x 2 (Composite Socket)
  ● Audio Input x 1 (Composite Socket)
  ● VGA (15 pin DIN) Input x 1		     ● VGA (15 pin DIN) Input x1 ( on rear panel) A / V Input x 2 (Composite socket)   ● Video Input x 2 (Composite Socket)
  ● Audio Input x 1 (Composite Socket)
  ● VGA (15 pin DIN) Input x 1		  VGA (15 pin DIN) Input
Touch Screen Yes No No No Yes
Certificate Approved CE/E13/FCC CE/E13/FCC CE/E13/FCC CE/E13/FCC CE/E13/FCC
Power Consumption < 8W < 8W < 8W < 8W < 8W
Operation Temperature -5°C ~+75°C -5°C ~+60°C -5°C ~+70°C -5°C ~+60°C -5°C ~+70°C
PAL/NTSC Switching YES YES YES YES YES
Weight (g) 500 500  500  500 500
Dimension (mm) 187x117x36 187x121x35 187x121x35 187x121x35 187 x 121 x 35
OSD Controller YES YES YES YES YES
Surface Coating YES YES YES YES YES
Other Features
  • Touch Screen control using USB or RS-232. Please state on order
  • Optional IR remote control

  • With Remote Control
  • AV Output x 1 (Composite socket)
  • PAL / NTSC Switch
  • PAL / NTSC Switch
  • OptionalIR Remote Control

  • Touch Screen control using USB or RS-232. Please state on order
  • Optional IR remote control
NOTE Suitable for Vehicle Reverse Monitoring System. Suitable for PC, GPS and standard VGA use. Suitable for Security, Game and DVD use. Suitable for PC, GPS, Security, Games, Standard VGA, Gsme and DVD use. Suitable for PC, GPS use.
