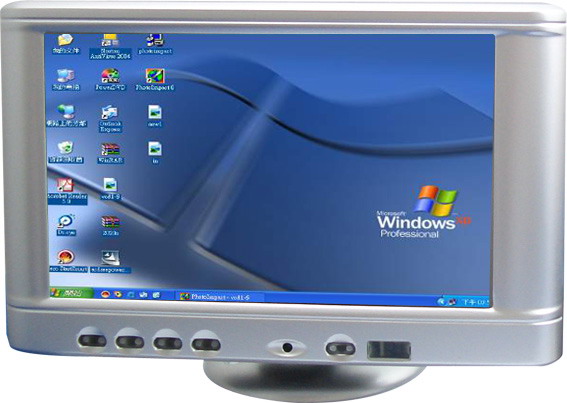

GA-700 DVI

Specification:

700D YYV 700D YV
Power Supply DC 12V~24V, 1A DC 12 ~ 24 V, 1A
Operating Voltage DC 12V DC 12V
Size 7", 16:9 7" (16:9)
Display Resolutions VGA 640 x 480
VGA 800 x 600 (auto searching)
VGA 1600 x 1200		 VGA 640 x 480
VGA 800 x 600 (auto searching)
VGA 1600 x 1200
Input source   ● DVI x 1
  ● VGA (15 pin DIN) Input x 1
  ● Video Input x 2 (Composite Socket)
  ● Audio Input x 1 (Composite Socket)
  ● DVI x 1
  ● VGA (15 pin DIN) Input x 1
  ● Video Input x 2 (Composite Socket)
  ● Audio Input x 1 (Composite Socket)

Touch Screen Yes No
Certificate Approved CE/E13/FCC CE/E13/FCC
Power Consumption < 8W < 8W
Operation Temperature -5°C ~+60°C -5°C ~+60°C
PAL/NTSC Switching YES YES
Weight (g) 500 500
Dimension (mm) 187x117x36 187x121x35
OSD Controller YES YES
Surface Coating YES YES
Other Features
  • Touch Screen control using USB or RS-232. Please state on order
  • Optional IR remote control
  • PAL / NTSC Switch
  • OptionalIR Remote Control

NOTE Suitable for PC, GPS, Vehicle Reverse Monitoring System, Security, Game and DVD use. Suitable for PC, GPS, Vehicle Reverse Monitoring System, Security, Game and DVD use.
Safety
  • CE, FCC, E-Mark, RoHS
  • CE, FCC, E-Mark, RoHS

GAIN ASSOCIATES INC.
 Electronic & Communication Dept.
 E-mail: ec.sales@gain.com.tw　

Last Update: 19-05-2010
